I saw cannons being discussed in another thread. There seemed to be some interest, but rather than derailing another thread I figured I would start one.
Disclaimer:These are all black powder! Do not use smokeless powder in anything designed for black powder.
My favorite uncle let an employee build a small cannon in my uncles shop many years ago. He said it was OK until the employee and some of his friends were shooting it and drinking. They ran out of black powder and tried smokeless and it basically became a pipe bomb.
That was the end of cannons in my uncle’s shop.
The picture below has some that reside at my house numbered for description.
#1 This is my first build. It shoots golf balls and will shoot them through 5/8” OSB. I never have shot it over my chronograph, but should. A golfball comes out fast enough you can’t see them in flight.
#2 This field piece is 50 caliber. I purchased it a number of years ago at a gun show. The carriage is cast aluminum with a brass or bronze barrel.
#3 I think I made a total of 4 of these 75 caliber cannons as Christmas gifts for my father, father in law, and nephews a little more than 10 years ago. 3 of the 4 have bronze barrels while the one pictured is stainless steel. It was past down to my son when my father in law past away.
#4 A friend of mine was really into black powder and wanted a golfball cannon. We both made one from bronze. We made 2 so he could see how I did it and copy mine using the same set ups. I never have taken time to make anything for the barrel to set in. Another friend offered to get them chrome plated and we took him up on it.
#5 This little guy shoots BBs and was a project I did with my son. He never took any interest in machine work and we never got around to adding trunnions to it.
The video above the last picture shows a friend and I shooting anvils at the antique tractor show at Adrian Mo. It is in slow motion. There are other videos posted on YouTube in real time but I think this slow motion is interesting. Somewhere around two thirds and three quarters of 3F or 4F black powder goes in the shallow hollow in the base of those anvils. Been doing that at 12 noon all three days of the show for over 20 years. It is about as much fun I have ever had with my clothes on. I have been asked to do anvil shooting at other locations but I won’t do it as we can control how close people are to this activity at the show. We have enough space to be safe. The Shooting team takes cover behind trees a safe distance away while the fuse is burning. This activity was started by blacksmiths and was done to sound an alarm and celebrate.

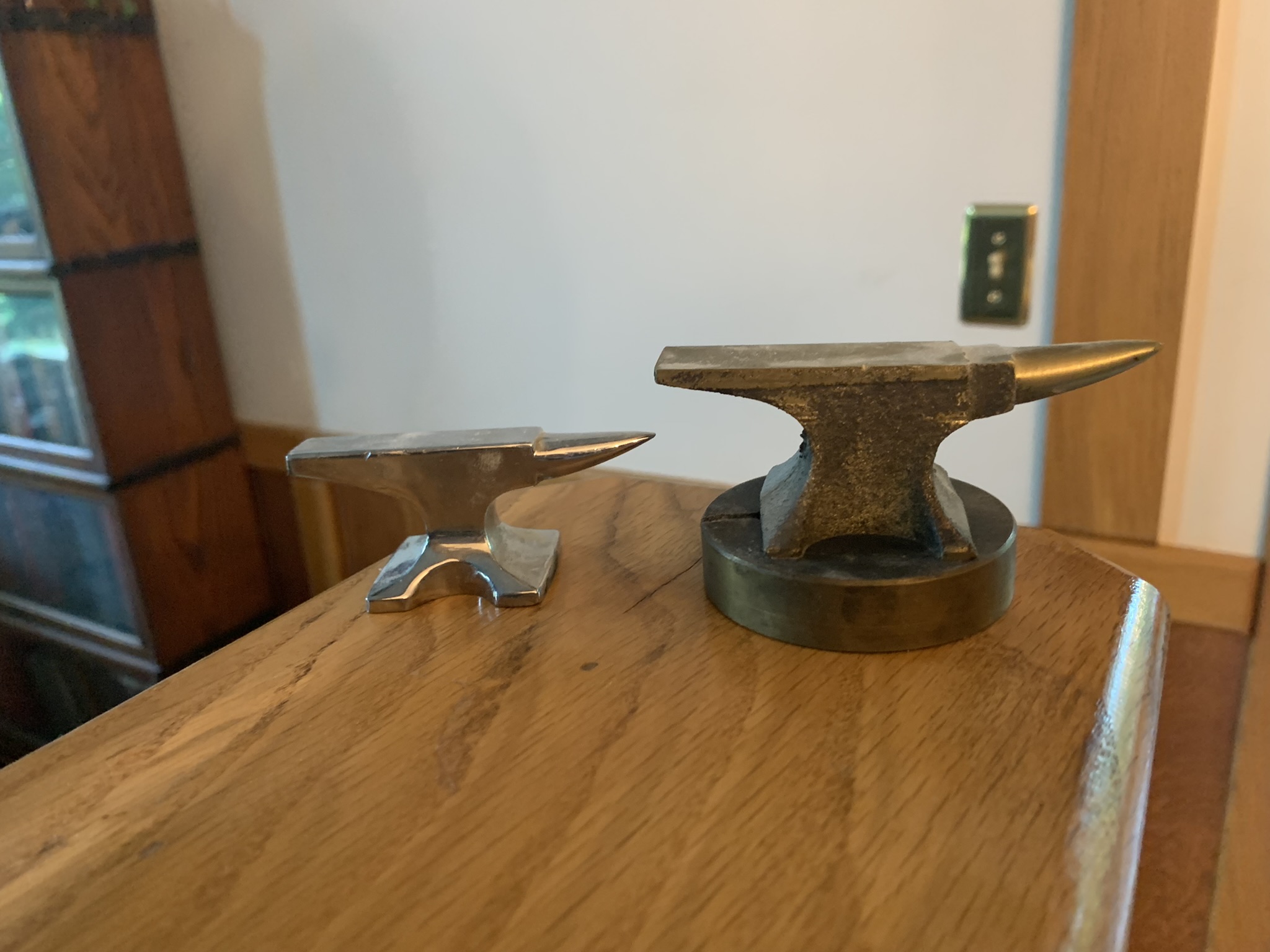

The picture at the very bottom shows a couple miniature anvils and a base I made to shoot them. The friend that’s shoots anvils with me took a piece of concrete and chiseled out a slot for a firecracker. He set a miniature anvil over the firecracker and lit it. Miniature anvil shoot.
I milled a recess for the firecracker in a piece of brass round stock and gave it to him. Of course I had to have one too.
Another friend had a 6 pound field piece he used in reenactments. He asked me to be on the crew. I appreciated the invite but have enough hobbies. He sold it when his oldest son got enough experience that he wanted to live fire it instead of only shooting blank charges.
Now let’s see yours!
Disclaimer:These are all black powder! Do not use smokeless powder in anything designed for black powder.
My favorite uncle let an employee build a small cannon in my uncles shop many years ago. He said it was OK until the employee and some of his friends were shooting it and drinking. They ran out of black powder and tried smokeless and it basically became a pipe bomb.
That was the end of cannons in my uncle’s shop.
The picture below has some that reside at my house numbered for description.
#1 This is my first build. It shoots golf balls and will shoot them through 5/8” OSB. I never have shot it over my chronograph, but should. A golfball comes out fast enough you can’t see them in flight.
#2 This field piece is 50 caliber. I purchased it a number of years ago at a gun show. The carriage is cast aluminum with a brass or bronze barrel.
#3 I think I made a total of 4 of these 75 caliber cannons as Christmas gifts for my father, father in law, and nephews a little more than 10 years ago. 3 of the 4 have bronze barrels while the one pictured is stainless steel. It was past down to my son when my father in law past away.
#4 A friend of mine was really into black powder and wanted a golfball cannon. We both made one from bronze. We made 2 so he could see how I did it and copy mine using the same set ups. I never have taken time to make anything for the barrel to set in. Another friend offered to get them chrome plated and we took him up on it.
#5 This little guy shoots BBs and was a project I did with my son. He never took any interest in machine work and we never got around to adding trunnions to it.
The video above the last picture shows a friend and I shooting anvils at the antique tractor show at Adrian Mo. It is in slow motion. There are other videos posted on YouTube in real time but I think this slow motion is interesting. Somewhere around two thirds and three quarters of 3F or 4F black powder goes in the shallow hollow in the base of those anvils. Been doing that at 12 noon all three days of the show for over 20 years. It is about as much fun I have ever had with my clothes on. I have been asked to do anvil shooting at other locations but I won’t do it as we can control how close people are to this activity at the show. We have enough space to be safe. The Shooting team takes cover behind trees a safe distance away while the fuse is burning. This activity was started by blacksmiths and was done to sound an alarm and celebrate.
The picture at the very bottom shows a couple miniature anvils and a base I made to shoot them. The friend that’s shoots anvils with me took a piece of concrete and chiseled out a slot for a firecracker. He set a miniature anvil over the firecracker and lit it. Miniature anvil shoot.
I milled a recess for the firecracker in a piece of brass round stock and gave it to him. Of course I had to have one too.
Another friend had a 6 pound field piece he used in reenactments. He asked me to be on the crew. I appreciated the invite but have enough hobbies. He sold it when his oldest son got enough experience that he wanted to live fire it instead of only shooting blank charges.
Now let’s see yours!
Last edited:
The advantage of the golf ball is twofold- limited kinetic energy thus limited range and potential damage plus abundance of ready made balls of the same size. Firing cast lead balls of that size requires great care - obviously. A "square" charge is a standard for most blackpowder arms firing a round lead ball. In the case of a 1.75" inch diameter bore, it is the amount of blackpowder that takes up about 1 caliber of the bore or about 1.75" of length. I think Graf still sells fuse. Using low density paper or fiber wad and flour on top for low energy projectile for 4th of July salute guaranteed to shake windows. Stand behind and to the side a good distance when firing cannons. Smoldering paper wads downrange can be fire hazard in dry conditions- plan accordingly. If up in the 4 inch plus category of cannon... that is a whole different animal!
